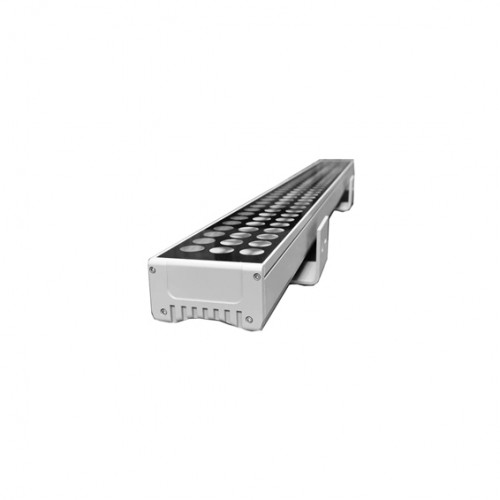

    • DFL-06-1 이미지 0
    • DFL-06-1
    LAMP POWER LED 36W / [ 24W / 18W ]
    BODY ALUMINUM DIE-CASTING
    COVER TEMPERED GLASS
    BRACKET ANGLE CONTROL
    LENS 8, 15, 30, 45, 60
    COLOR TEMPERATURE 3000K / 4000K / 5700K / R.G.B.W
    SIZE L1000 * W42 / [W36] * H79
    INPUT DC 24V
    PSU ON OFF or DIMMING / DMX 512
    FINISH POWDER COATING
    PROTECTION IP65

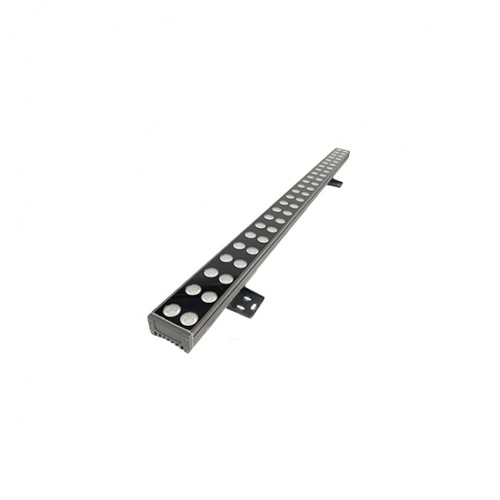

    • DFL-06-2 이미지 0
    • DFL-06-2
    LAMP LED 9W / 12W / 18W / [8W]
    BODY ALUMINUM / TEMPERED GLASS
    LENS 30
    COLOR TEMPERATURE 3000K
    SIZE L510 / [L350] * H30 *D36
    INPUT DC 24V
    PROTECTION IP65
    • DFL-06-3 이미지 0
    • DFL-06-3
    LAMP LED 54W
    BODY ALUMINUM / TEMPERED GLASS
    LENS 30
    COLOR TEMPERATURE 3000K
    SIZE L1000 * H56 * D68
    INPUT DC 24V
    PROTECTION IP65
    • DFL-06-320 이미지 0
    • DFL-06-320
    LAMP POWER LED 100W / [50W]
    BODY ALUMINUM DIE-CASTING
    COVER TEMPERED GLASS
    BRACKET ANGLE CONTROL
    LENS 8, 15, 30, 45, 60
    COLOR TEMPERATURE 3000K
    SIZE L1000 / [L510]* W90 * H141.5
    INPUT DC 24V
    PSU ON OFF
    FINISH POWDER COATING
    PROTECTION IP65

PRODUCT DRAWING

  • PRODUCT DRAWING
  • PRODUCT DRAWING
  • PRODUCT DRAWING
  • PRODUCT DRAWING
